📡 Telemetry

← Back to README

Telemetry config root is telemetry.Config:

telemetry:
  attributes:
    k8s.namespace.name: payments
  metadata:
    max_value_size: 4KB
  logger: ...
  metrics: ...
  propagation: ...
  tracer: ...

attributes are plain OpenTelemetry resource labels attached to logs, metrics, and traces. They are not source strings. Fixed go-service identity attributes such as host.id, service.instance.id, service.name, service.version, and deployment.environment.name take precedence if the same key is configured.

Metadata

Request and service metadata is copied from the context to go-service logger records and trace attributes. Configure the maximum size of each exported value:

telemetry:
  metadata:
    max_value_size: 4KB

When max_value_size is omitted or 0, each value defaults to 1,024 bytes. Values are truncated on a UTF-8 boundary only in telemetry; the original value remains in the request context and transport metadata. Choose a value that fits the service’s log and trace payload budgets: the limit applies to every metadata-bearing log record and span.

Propagation

OpenTelemetry context propagation defaults to W3C Trace Context plus W3C Baggage for extraction and injection:

telemetry:
  propagation:
    formats:
      - tracecontext
      - baggage

Mixed tracing estates can enable additional formats:

telemetry:
  propagation:
    formats:
      - tracecontext
      - baggage
      - b3

Supported propagators are tracecontext, baggage, b3, b3multi, and none. Use none only as the sole value for formats.

B3 uses the upstream B3 propagator, which supports both single-header and multi-header B3 formats.

Logging

Logging uses log/slog.

Supported built-in logger kinds:

• json
• text
• tint
• otlp

Supported logger levels are debug, info, warn, and error. When level is unset, logging defaults to info; unknown values fail logger construction.

JSON logger

telemetry:
  logger:
    kind: json
    level: info

Text logger

telemetry:
  logger:
    kind: text
    level: info

OTLP logger

telemetry:
  logger:
    kind: otlp
    level: info
    protocol: http
    url: http://localhost:4318/v1/logs
    http_timeout: 10s
    batch_timeout: 5s
    export_timeout: 30s
    max_queue_size: 2048
    max_export_batch_size: 512
    headers:
      Authorization: env:OTLP_LOGS_AUTH

[!NOTE]

• batch_timeout, export_timeout, max_queue_size, and max_export_batch_size tune the OTLP batch export pipeline and apply only when kind is otlp. When a value is unset or zero, the OpenTelemetry SDK default is used (queue 2048, batch 512). A nonzero batch_timeout must use whole-second precision. Explicit queue and batch limits may be at most 8192 and 2048, respectively; the effective batch may not exceed the effective queue.
• http_timeout bounds one OTLP/HTTP export request. It defaults to 10s when unset or zero and does not apply to OTLP/gRPC.
• headers values are source strings.
• Telemetry header maps are resolved during config projection; unset env: values and unreadable file: values fail fast (panic during startup).
• After resolution, go-service passes header names and values to the selected exporter without validating HTTP or gRPC syntax. Use headers valid for the selected protocol; an exporter may report invalid syntax only when it attempts an export, not during startup.

[!WARNING] OTLP exporters reject non-loopback http:// endpoints when headers are configured. Use HTTPS for remote collectors that require authorization headers; cleartext with headers is accepted only for local loopback endpoints. OTLP/HTTP exporters do not follow redirects; configure the final collector URL.

OTLP/gRPC exporters use protocol: grpc and a host:port endpoint such as localhost:4317. Header-bearing remote gRPC endpoints require the signal’s tls config; loopback gRPC endpoints may still use cleartext.

OTLP exporter endpoints must be set in go-service config fields such as telemetry.logger.url, telemetry.metrics.url, and telemetry.tracer.url. Standard OpenTelemetry endpoint environment variables such as OTEL_EXPORTER_OTLP_ENDPOINT are not used as fallback sources. Configure OTLP/HTTP request timeouts and TLS material with http_timeout and tls; corresponding OpenTelemetry timeout and certificate environment variables are not projected into go-service config.

OTLP exporters can use the same TLS source-string model as other go-service clients. HTTP exporters require an https:// URL for TLS, while gRPC exporters use protocol: grpc:

telemetry:
  tracer:
    kind: otlp
    protocol: grpc
    url: collector.example.com:4317
    tls:
      ca: file:/etc/otel/ca.pem
      cert: file:/etc/otel/client.crt
      key: file:/etc/otel/client.key
      server_name: collector.example.com
    headers:
      Authorization: env:OTLP_TRACES_AUTH

Use the same tls shape under telemetry.logger or telemetry.metrics for OTLP/HTTPS or OTLP/gRPC.

Metrics

Supported metrics kinds:

• prometheus
• otlp

Prometheus

telemetry:
  metrics:
    kind: prometheus
    prometheus:
      without_suffixes: true
      without_target_info: true
      without_scope_info: true

When Prometheus is enabled on HTTP transport, metrics are exposed at /<name>/metrics.

The optional prometheus block shapes exporter output for compatibility with an existing Prometheus/Grafana/alerting stack. without_suffixes drops unit (for example _seconds, _bytes) and _total counter suffixes from metric names, without_target_info omits the target_info metric, and without_scope_info omits the otel_scope_name/otel_scope_version labels. When the prometheus block is omitted, the exporter keeps its default OpenTelemetry-conventional output.

OTLP metrics

telemetry:
  metrics:
    kind: otlp
    protocol: http
    url: http://localhost:9009/otlp/v1/metrics
    http_timeout: 10s
    interval: 30s
    timeout: 5s
    headers:
      Authorization: env:OTLP_METRICS_AUTH

interval and timeout apply only to OTLP push metrics. http_timeout bounds an OTLP/HTTP request. When interval or timeout is unset or zero, the OpenTelemetry SDK default is used; http_timeout defaults to 10s. A nonzero interval must use whole-second precision.

Histogram buckets

Override the default histogram bucket boundaries per instrument with an ordered telemetry.metrics.views list. Each pattern uses OpenTelemetry name matching, including * wildcards:

telemetry:
  metrics:
    views:
      - pattern: http.server.request.duration
        boundaries: [0.005, 0.01, 0.05, 0.1, 0.5, 1, 5]
      - pattern: "rpc.*.duration"
        boundaries: [0.01, 0.1, 1]

Boundaries are in the instrument’s unit (seconds for duration histograms, bytes for size histograms) and should be listed in increasing order. Views apply to histogram instruments regardless of metrics kind; an unset or empty list keeps the OpenTelemetry SDK default buckets. Views are evaluated in list order; the first matching view is applied. Migrate the previous map form by making each map entry a list item with pattern and boundaries fields.

go-service passes configured boundaries to OpenTelemetry unchanged and does not validate their order. Boundaries should be increasing: the supported OpenTelemetry SDK reports duplicate or decreasing boundaries through its global error handler and uses its default histogram aggregation for the matching instrument; configuration and startup do not fail.

Tracing

Tracing supports OTLP exporter config:

telemetry:
  tracer:
    kind: otlp
    protocol: http
    url: http://localhost:4318/v1/traces
    http_timeout: 10s
    batch_timeout: 5s
    export_timeout: 30s
    max_queue_size: 2048
    max_export_batch_size: 512
    sampler:
      kind: ratio
      ratio: 0.25
    headers:
      Authorization: env:OTLP_TRACES_AUTH

[!NOTE] batch_timeout, export_timeout, max_queue_size, and max_export_batch_size tune the OTLP batch span export pipeline. When a value is unset or zero, the OpenTelemetry SDK default is used (queue 2048, batch 512). A nonzero batch_timeout must use whole-second precision. Explicit queue and batch limits may be at most 8192 and 2048, respectively; the effective batch may not exceed the effective queue.

http_timeout bounds one OTLP/HTTP export request. It defaults to 10s when unset or zero and does not apply to OTLP/gRPC.

OTLP exporters default to protocol: http. Set protocol: grpc and use a host:port url, such as localhost:4317, to export through OTLP/gRPC.

Supported sampler kinds:

• always_on: record every trace.
• always_off: drop every trace.
• ratio: follow an incoming parent span’s sampled decision when the request already has trace context; otherwise record the configured fraction of new root traces. Set ratio between 0 and 1, where 0 drops new root traces and 1 records all new root traces.

When sampler is omitted, go-service preserves the OpenTelemetry SDK default sampler and SDK sampler environment handling.

Telemetry libraries used

• https://pkg.go.dev/go.opentelemetry.io/contrib/instrumentation/runtime
• https://pkg.go.dev/go.opentelemetry.io/contrib/instrumentation/net/http/otelhttp
• https://pkg.go.dev/go.opentelemetry.io/contrib/instrumentation/net/http/httptrace/otelhttptrace
• https://pkg.go.dev/go.opentelemetry.io/contrib/instrumentation/google.golang.org/grpc/otelgrpc
• https://github.com/redis/go-redis/tree/master/extra/redisotel
• https://github.com/XSAM/otelsql

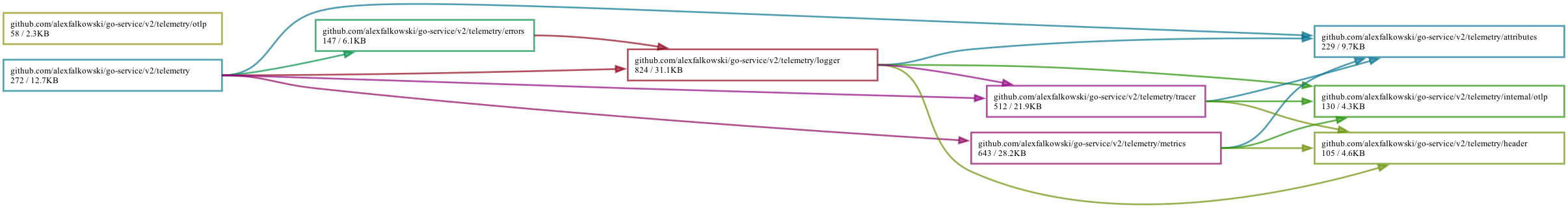

Dependencies
